Photocell Sensor Shorting Cap, Outdoor Light Photoelectric Switch Short Circuit Cap, Twist Lock Plug for Outdoor LED Shoebox Area Light, UL Listed-2 Pack

$23.00

Download Specs Sheet

Shipping: US free shipping
Shipping by: FedEx UPS
Delivery time: 2-4 business days after payment

Quantity Discount (%) Price
1 - 2 — $23.00
3 - 9 4.35 % $22.00
10 - 29 8.7 % $21.00
30+ 13.04 % $20.00
Add to compare
Add to wishlist
SKU: JL-208 Categories: , Tag:
Description

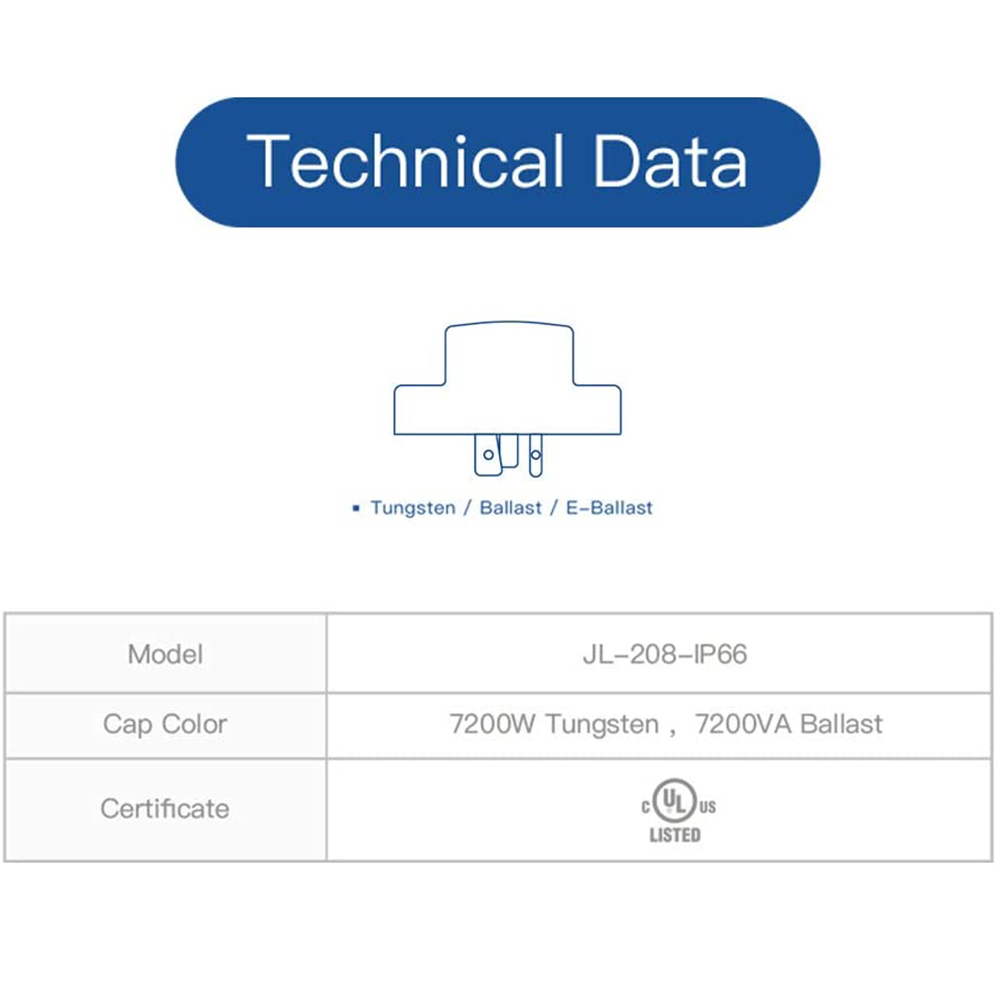

Shorting Cap Spec:

  • Model: JL-208
  • Rated Voltage: 0-480VAC
  • Rated Frequency: 50/60Hz
  • Relative Humidity: 99%RH
  • Energy Consumption: Less than 1Watt
  • Housing: UV stabilized impact resistant polycarbonate (PC)
  • Operating Temp: -40°C to +70°C (-40°F to +158°F)
  • Certification: UL listed

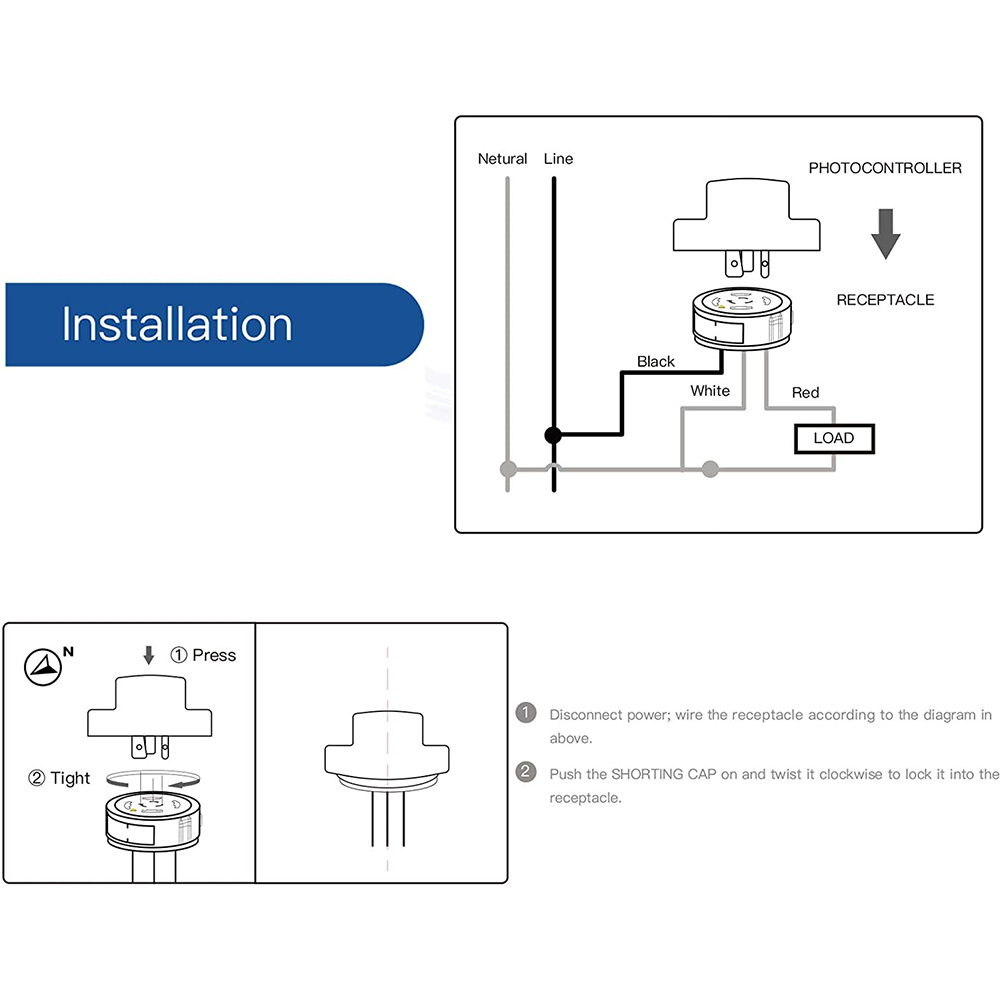

Photocell Shorting Cap Installation:

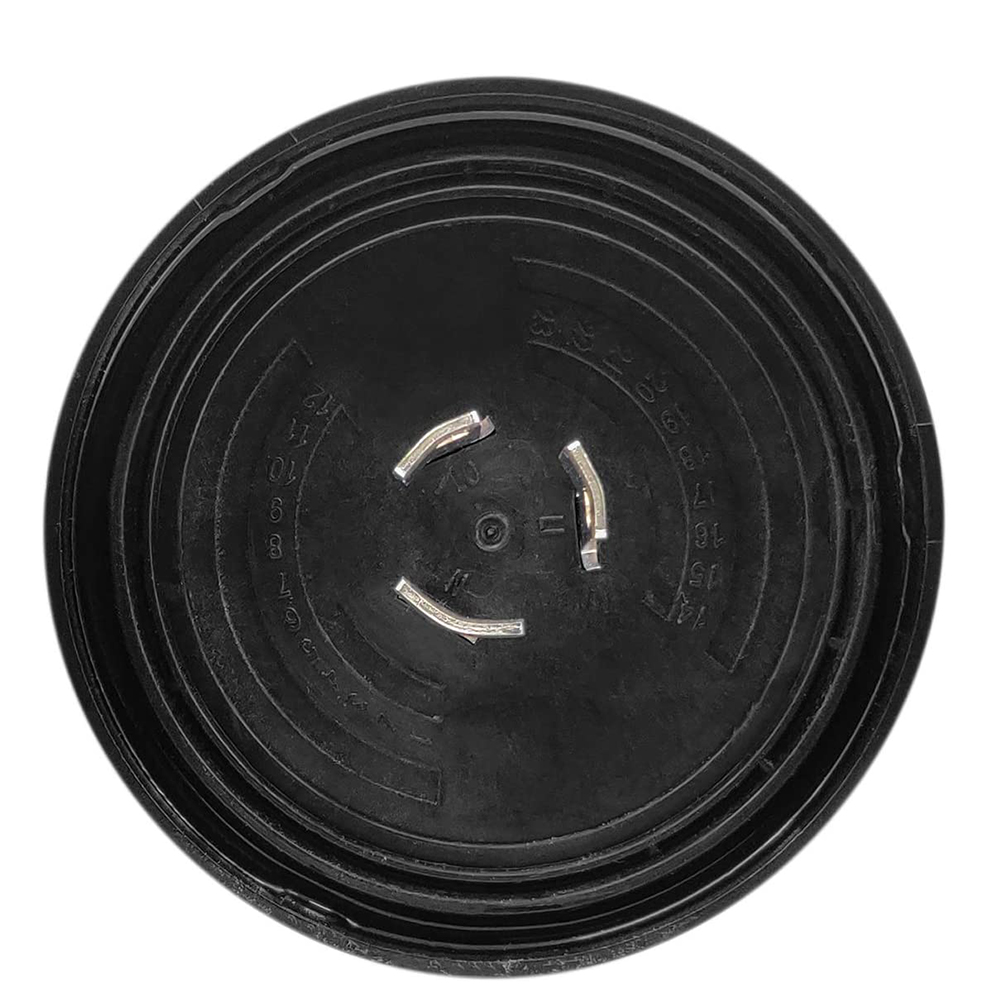

  • Intend to short a twist-lock photocontrol receptacle while under maintain. Easy-to-maintain Twist-lock(ANSI C136.10)
  • IP66 body protection/IP65 while installed with recognized receptacle.
  • UV stabilized Polycarbonate Enclosure/UV stabilized Polybutylene Base.
  • This product provides twist lock terminals meeting the requirements of ANSI C136.10-2010 and the Standard for Plug-In, Locking Type Photocontrols for Use with Area Lighting UL773.
  • Can be used with a receptacle meeting ANSI C136.41-2013.

Any question please contact us below:

    Subscribe to our newsletters!

    Get the latest updates on new products and upcoming sales

    Additional information
    Weight 1 lbs

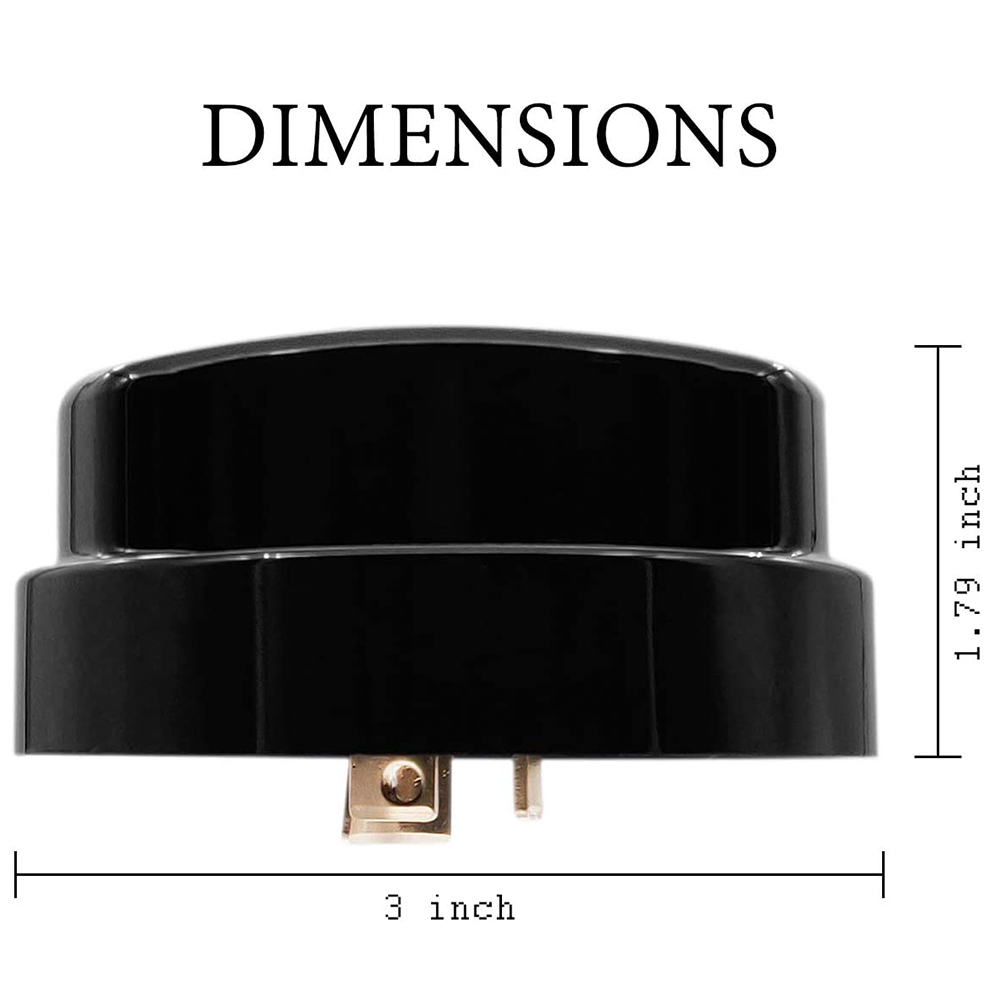

    Dimensions 2 × 2 × 2 in
