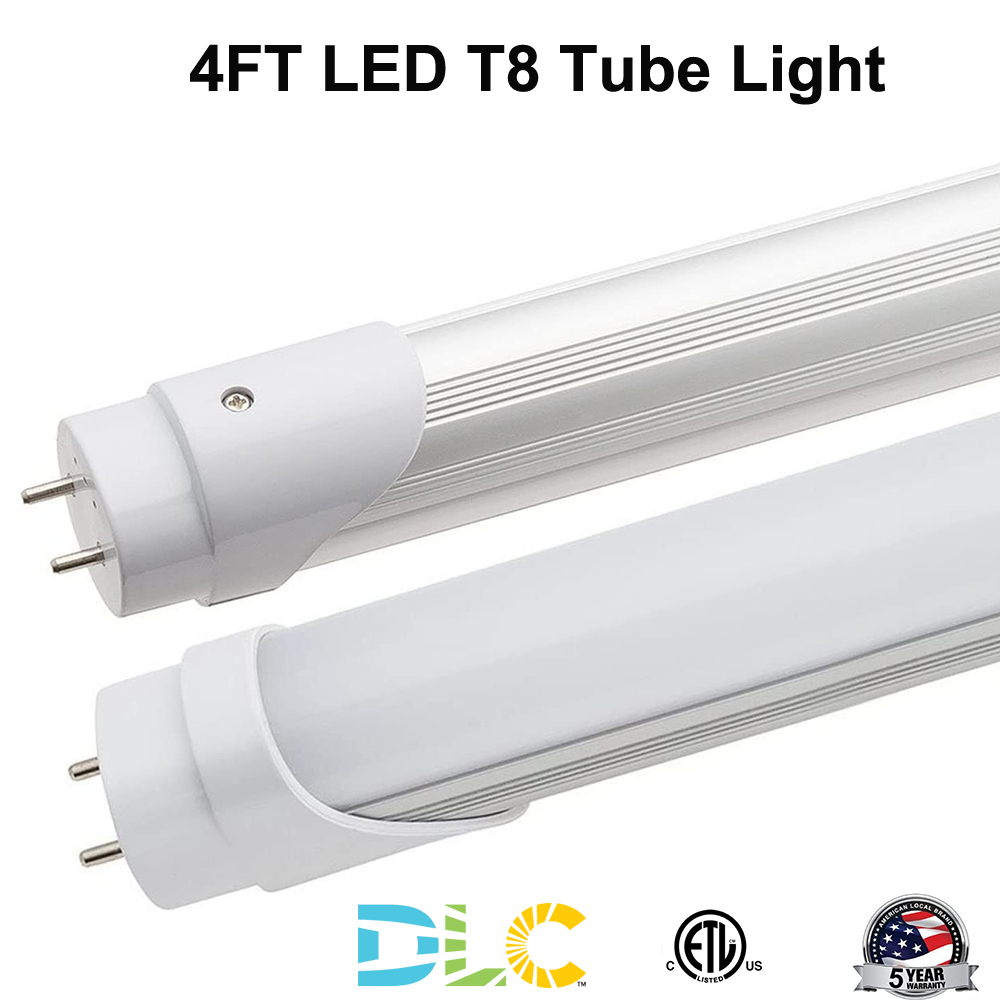

T8 4FT LED Tube Light Type B Ballast Bypass
Tube Lights Indoor Features:

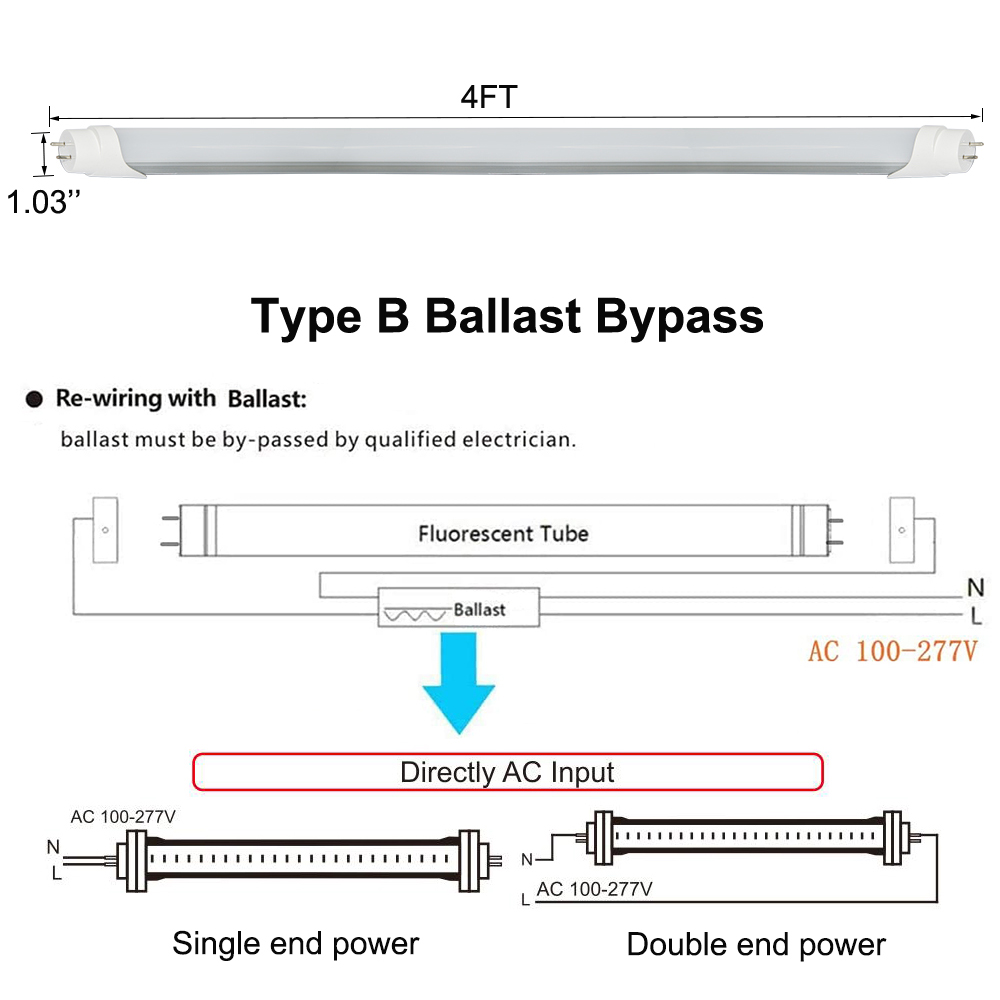

- F32 T8 fluorescent tube replacement – standard 4 Ft LED Linear tubes are designed to replace T8 fluorescent tube; the 4′ T8 LED light works with standard 120 volts or 277 volts and requires a ballast bypass installation
- Easy double-ended connection installation– This ETL-Listed T8 LED tubes are dual-end powered; Direct wiring to eliminate the need of ballast; the non-dimmable
- Features – Has instant on brightness and no flickering; Save money and time by switching to energy efficient lighting.

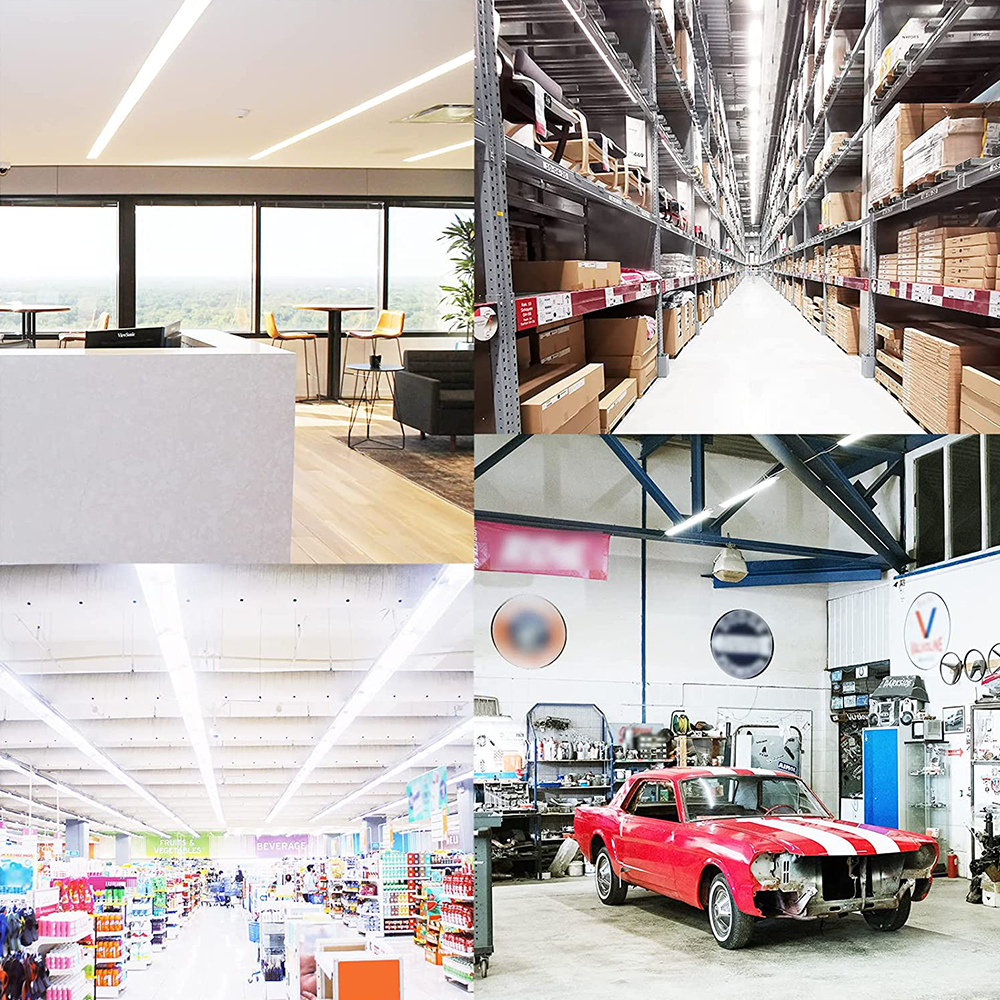

- Wide Application-Perfect for garage, office, shop, basement, etc. You will notice a softer, more diffused light quality compare to the clear cover. Can be used without lampshade due to frosted finish.
4ft LED Tube Light Spec:
Item | LED T8 4FT Type B Tube Light | ||
SKU | CL-S4FT-T8B-12W | CL-S4FT-T8B-18W | CL-S4FT-T8B-22W |
Power | 12W | 18W | 22W |
Color Temperature | 4000k/5000k | 4000k/5000k | 5000k/6500k |
Lumen output | 2040M | 2340LM | 2860M |
Luminous Efficacy | 170lm/w | 130lm/w | 130lm/w |
Working Voltage | 100-277V AC 50/60HZ | ||
CRI | >80Ra | ||
Beam Angel | 120 degree | ||
Chip Brand | Epistar SMD2835 chips | ||
THD | <15% | ||

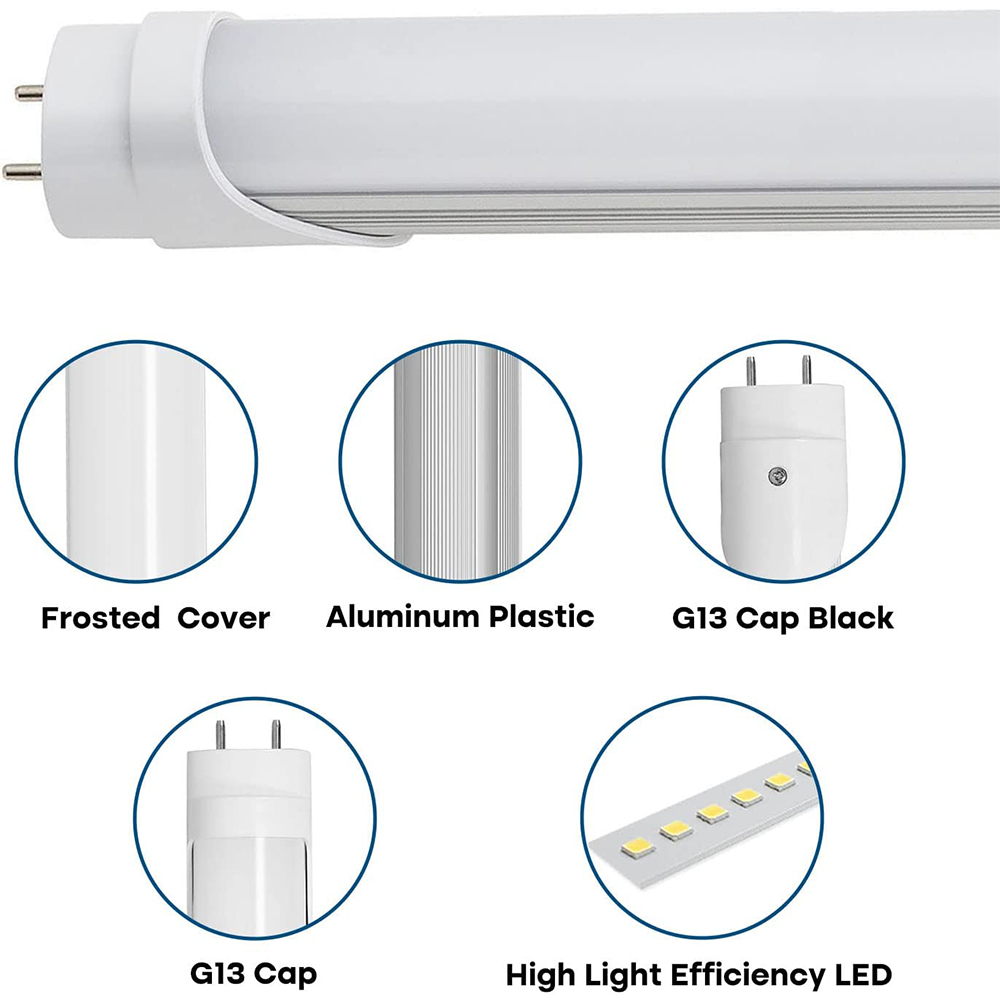

Diffuser | Frosted PC cover | ||
PF | >0.9 | ||
Bulb Base | G13 | ||
Bulb Shape Size | T8 | ||
Material | Aluminum+PC | ||
Shell Finish Color | White | ||
Type | Type B | ||
Working Temperature | -20˚C to 40˚C | ||
Feature | Ballast Bypass | ||
Safety Certificate | ETL cETL CE RoHS | ||
Energy Saving Certificate | DLC | ||
Lifespan | Min50000hours | ||
Warranty | 5 years | ||
Special offer link:
- Buy 4ft T8 type A+B plug and play tube light
- Buy 8ft tube light with R17D HO base
- Buy 8ft tube light with single pin FA8 base
- Dimmable T8 tube available from factory
- We also can accept OEM/ODM
Lilliana Von –
Easy to install, installed 8 of 28 fixtures so far flush mounted to ceiling of my shop. Decently constructed for the money and certainly bright. So far the two packages that have arrived have arrived damage free.
