20W 27W 40W 45W 60W 70W 4000K 5000K LED Canopy Lights Outdoor
Outdoor Canopy Lights Description:

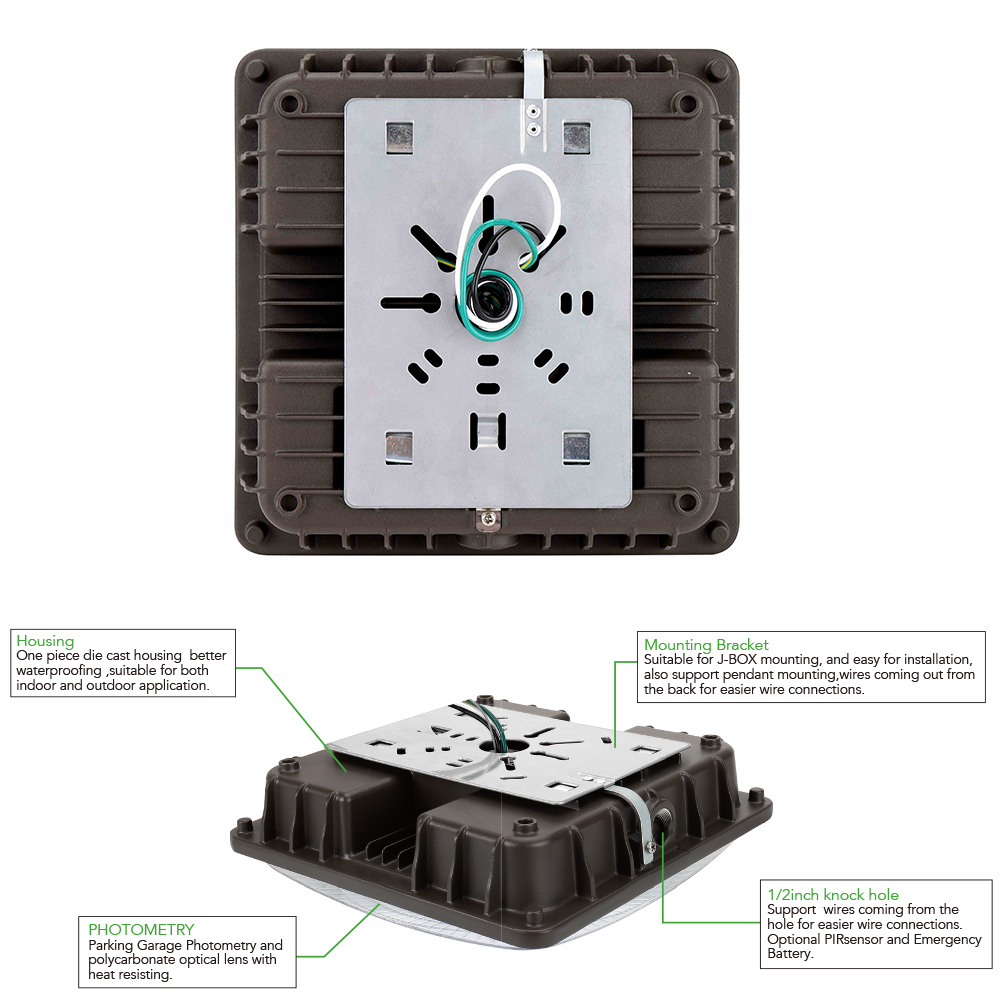

- Easy Installation – The mounting bracket is designed for single-person installation, J-BOX mounting also supports pendant mounting, wires coming out from the back for easier wire connections.

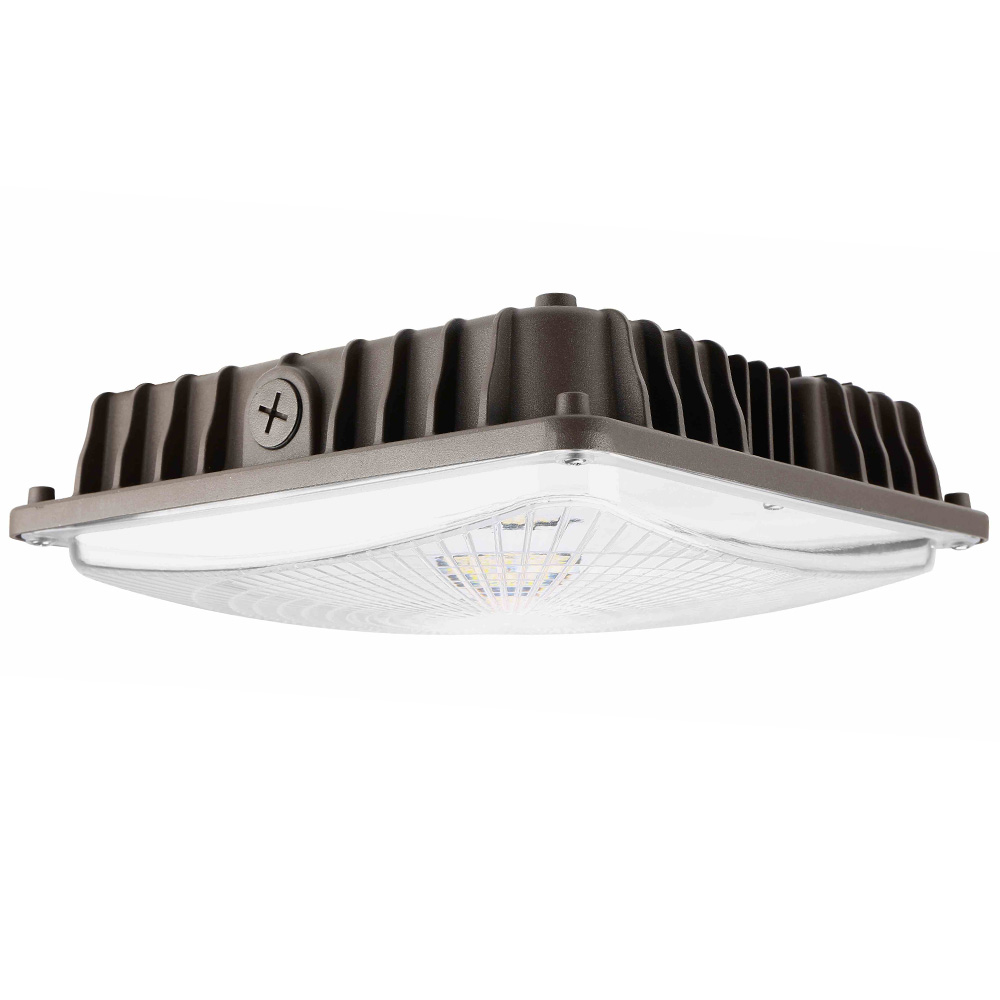

- Wide Application – This LED canopy light is one piece die cast housing and better waterproofing , suitable for both indoor and outdoor application, such as parking structures, storage areas, shopping area walkways, entryway, and low level security.

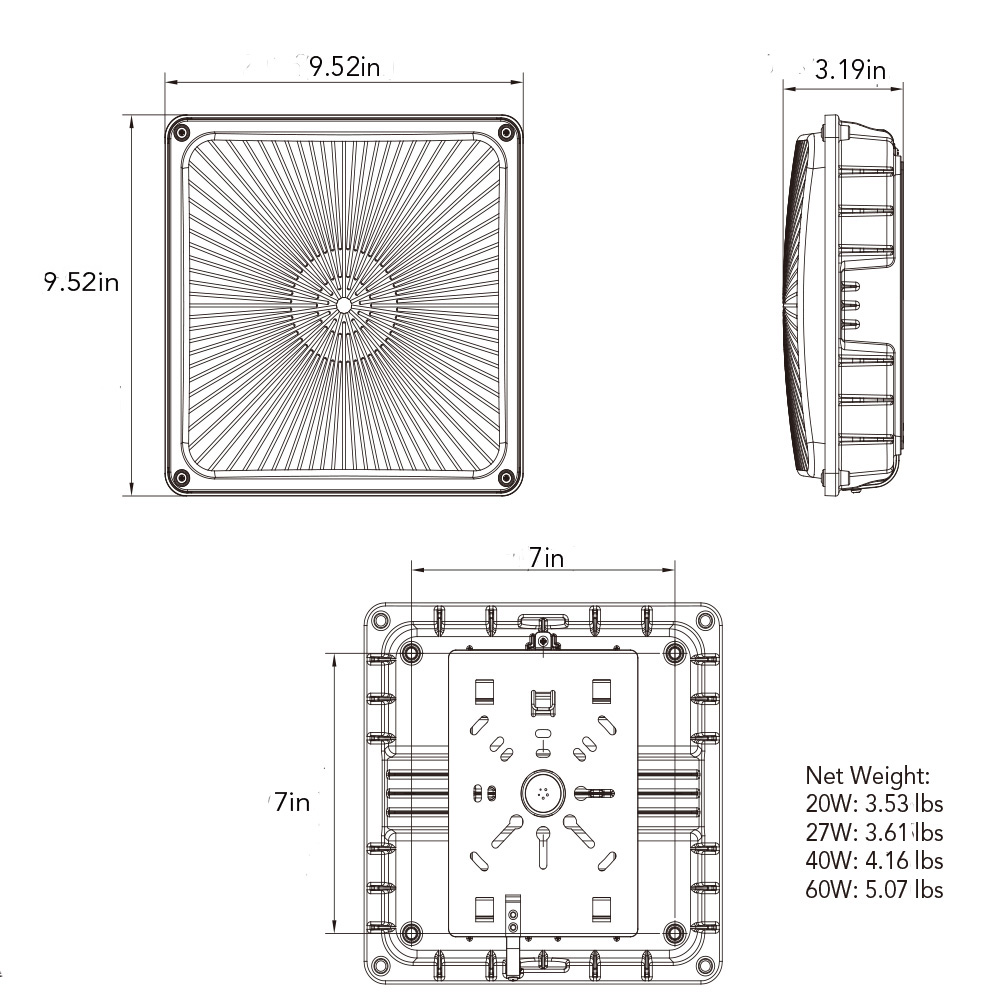

- Slim Size – The slim size 9.5×9.5 inch of the superior aluminum housing gives this canopy lights product better heat dissipation while also being rust-proof. This fixture is applicable for wet locations, letting you freely use it outdoors.
- Great Bright and Long Lifespan – Super bright canopy light made with High Lumen Output LED chips, with a high efficiency rating of 130lm/W. Long lifespan up to 50000hrs. 5 years warranty guarantee will kindly meet your expectation, you don’t need to worry about the lifespan of our product.
Canopy LED Lights Spec:
Item | LED Canopy Lights | |||||
SKU | CL-MCP05-20W-D | CL-MCP05-27W-D | CL-MCP05-40W-D | CL-PCP-45W-D | CL-MCP05-60W-D | CL-PCP-70W-D |
Power | 20W | 27W | 40W | 45W | 60W | 70W |
Lumens | 2600LM | 3800LM | 5450LM | 5400LM | 8000LM | 8450LM |
Equivalent | 40W-60W MH HPS | 50W-90W MH HPS | 80W-120W MH HPS | 90W-130W MH HPS | 120W-180W MH HPS | 140W-210W MH HPS |
Color Temperature | 5000K | 4000K/5000K | 4000K/5000K | 4000K/5000K | 4000K/5000K | 4000K/5000K |
Working Voltage | 120-277V AC 50/60HZ | |||||
CRI | >80Ra | |||||
Beam Angel | 120 degree | |||||
Chip Brand | Lumileds SMD 3030 LEDs | |||||
THD | <15% | |||||
PF | >0.9 | |||||
Driver Brand | UL Driver | |||||
Body Material | Die cast aluminum & PC lens | |||||
Shell Finish Color | Dark bronze | |||||
Mounting | Ceiling mount | |||||
Working Temperature | -40℉ – 113℉ | |||||
Working Humidity | 20%-90% | |||||

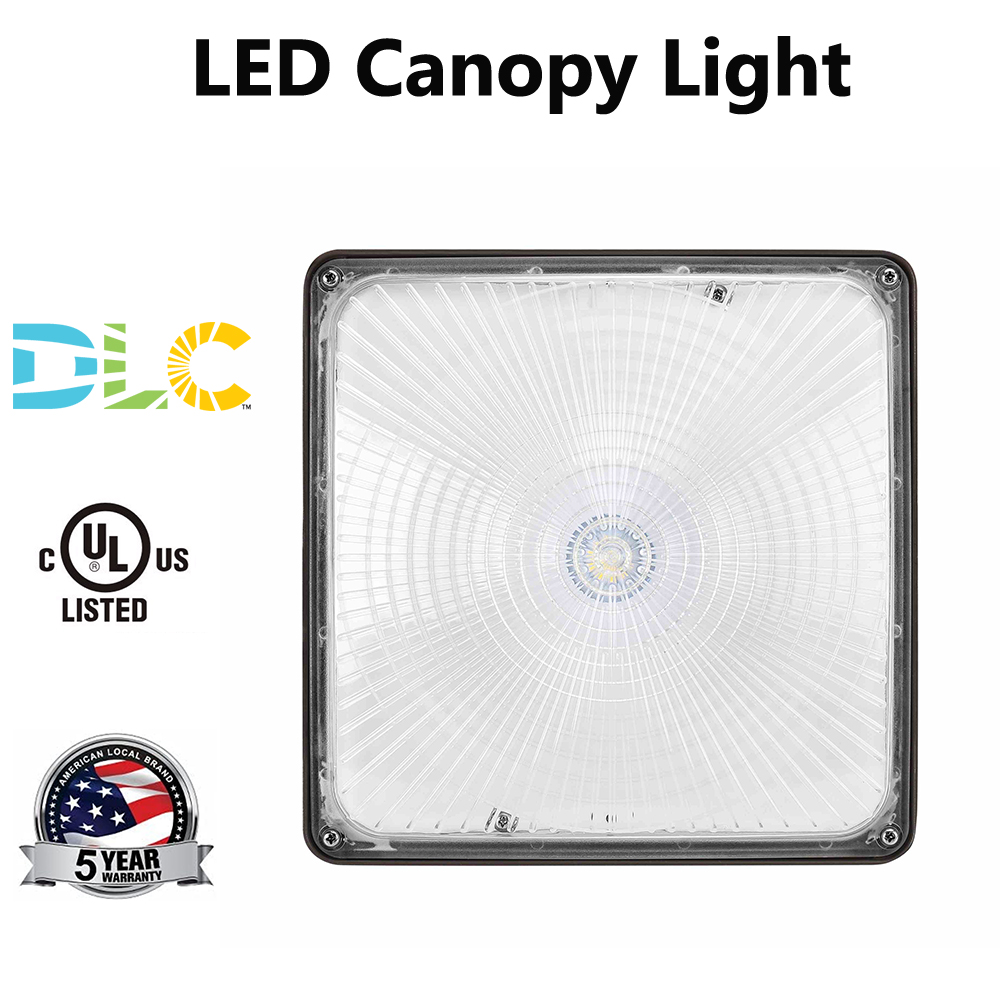

Safety Certificate | UL cUL | |||||
Energy Saving Certificate | DLC | |||||
Lifespan | Min50000hours | |||||
Warranty | 5 years |
Outdoor LED Canopy Light Special Offer link:
- Buy PIR sensor led canopy light fixture
- Buy 30W 50w canopy lights outdoor
- Buy white finish led canopy celiling light
- Buy power and CCT tunable canopy light
- We also can accept OEM/ODM
Any question please contact us below:
Loral –
These are very bright and very easy to install. Had them for a while with no problems so far. I have 4 of these installed in a 30×30 carport and when on it looks like it’s 12:00 daytime with no clouds.
Q Daddi –
These lights are BRIGHT, or at least bright enough.
We had these professionally installed and it’s been up and running for a few weeks now. Two of the lights are not covered, but hasn’t had any issues as of yet. Will update if anything changes. The light output is great enough for you to see at light, but not overblinding.
